Place of Origin: China Brand Name: KNOFC or OEM Certification: ISO9001/CE Model Number: GYXTW 2-24 Core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden drum Delivery Time: 8-10 working days Supply Ability: 200000M/Week
| Fiber Type: | G652D Or As Your Request | Fiber Brand: | YOFC / Corning Or As Your Request |
| Fiber Count: | 2-24 Core | Strength Member: | Steel Wire |
| Outer Sheath Material: | HDPE | Application: | Aerial / Duct |
| Life Expectancy: | More Than 30 Years | Operating Temperature: | -40°C To+70°C |
2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
Description:
The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof.
6. Two parallel steel wires ensure tensile strength.
7. Small diameter, light weight and friendly installation.
8. Long delivery length.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:

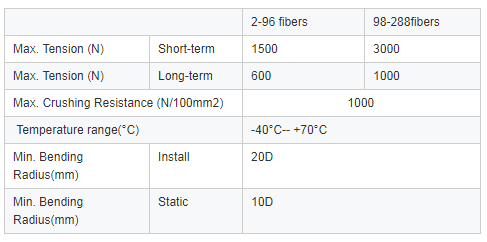

Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) |
Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GYXTW-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -20~+70 |
